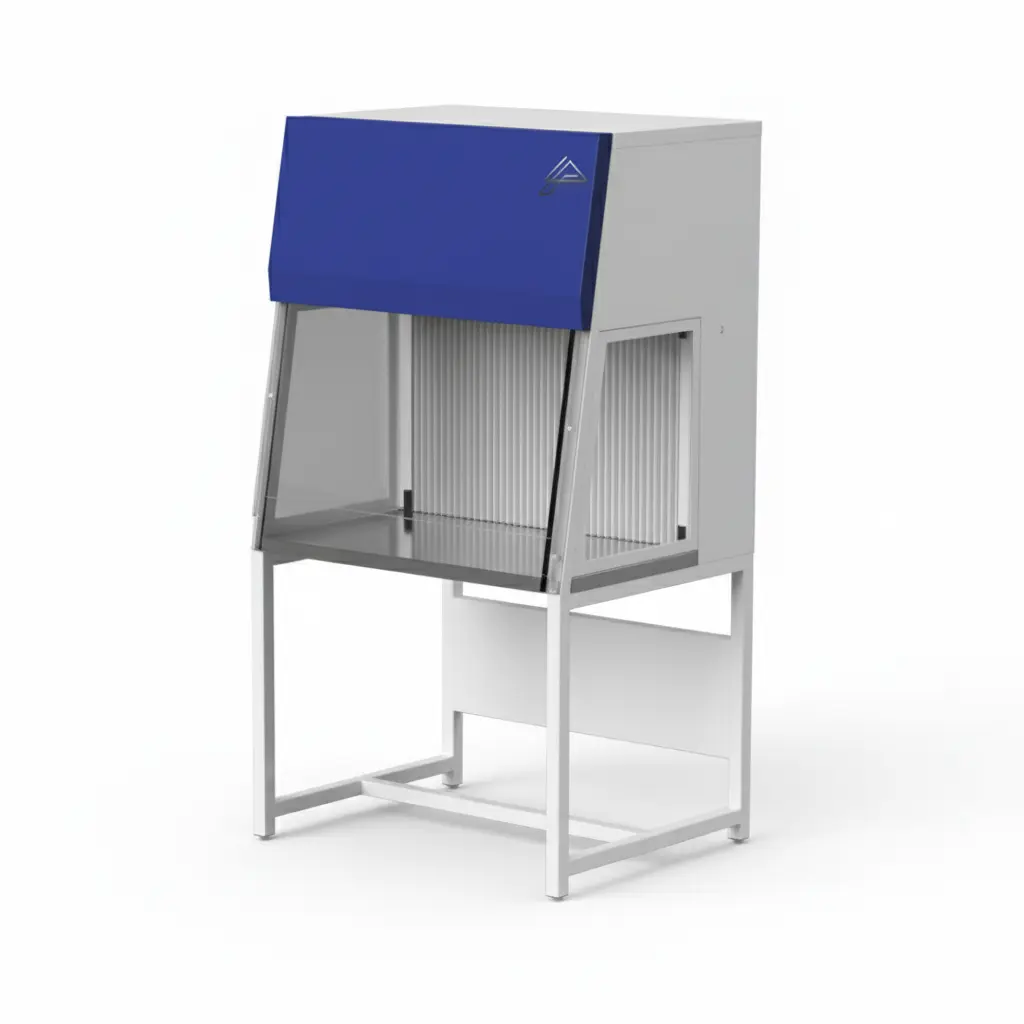

The Vertical Laminar Air Flow (LAF) by Anachem Lab Solutions Pvt. Ltd. is designed to provide a clean and controlled environment for sensitive laboratory applications. Engineered with precision, this system delivers a continuous stream of HEPA-filtered air, ensuring protection from airborne contaminants. The stainless steel structure, coupled with an acrylic glass front door and UV sterilization light, guarantees durability, visibility, and hygiene during operation.
Key Features
- Vertical Air Flow Design: Provides uniform laminar airflow toward the user workbench.
- Stainless Steel 304 Internal Surface: Corrosion-resistant and easy to clean.
- Acrylic Glass Door: Offers clear visibility and controlled access.
- HEPA/ULPA Filtration: Delivers 99.99% particle-free airflow.
- UV Sterilization (254 nm): Ensures microbial decontamination before and after use.
- LED Illumination (1300 Lux): Provides optimal visibility in the working zone.
- Adjustable Blower Speed: Maintains consistent air velocity (0.35–0.51 m/s).
- Gas/Vacuum Line Cock & Exhaust Fan: Allows easy connection for various lab operations.
- Noise Control (<65 dB(A)) for a comfortable working environment.
- CE Certified: Meets global quality and safety standards.
- Mobile & Adjustable Stand: Fitted with castor wheels for easy movement and height adjustment.
Applications
The Vertical Laminar Air Flow is ideal for use in:
-
Microbiology and Biotechnology Laboratories
-
Pharmaceutical Quality Control Labs
-
Electronic Component Assembly
-
Tissue Culture & Media Preparation
-
Research & Development Facilities
Technical Specifications
Specifications |
ALS-LAF-3000VE |
ALS-LAF-4000VE |
|---|---|---|
| LAF Type | Vertical | Vertical |
| Air Flow Direction | Towards User Work Bench | Towards User Work Bench |
| Exterior Dimensions (ft) | 3’ × 5’ × 3’ | 5’ × 5’ × 3’ |
| Interior Dimensions (ft) | 3’ × 2’ × 2’ | 4’ × 2’ × 2’ |
| Net Weight (Kg) | 200 | 240 |
| Shipping Weight (Kg) | 250 | 290 |
| Voltage / Frequency | 220V / 50Hz | 220V / 50Hz |
| Supply Filter | H14 | H14 |
| Efficiency (%) | 99.99 | 99.99 |
| Pre-Filter | F7 (90% @ 5 micron) | F7 (90% @ 5 micron) |
| UV Light (nm) | 254 | 254 |
| LED Light (Lux) | 1300 | 1300 |
| Blower Speed Adjuster | Yes | Yes |
| Sound Pressure Level dB(A) | <65 | <65 |
| Energy Consumption (W) | 180 | 300 |
| Air Velocity (m/s) | 0.35–0.51 | 0.35–0.51 |
| Internal Contact Surface | SS304 | SS304 |
| External Structure | MS / GI | MS / GI |
| Stand Height | 3 ft Adjustable | 3 ft Adjustable |
| Castor Wheels | Yes | Yes |
| Sash Opening (inch) | 8″/10″/12″ | 8″/10″/12″ |
| Fixed or Customized Sash | Yes | Yes |
| Filter Type (Custom) | HEPA / ULPA | HEPA / ULPA |
| Certification | CE | CE |
