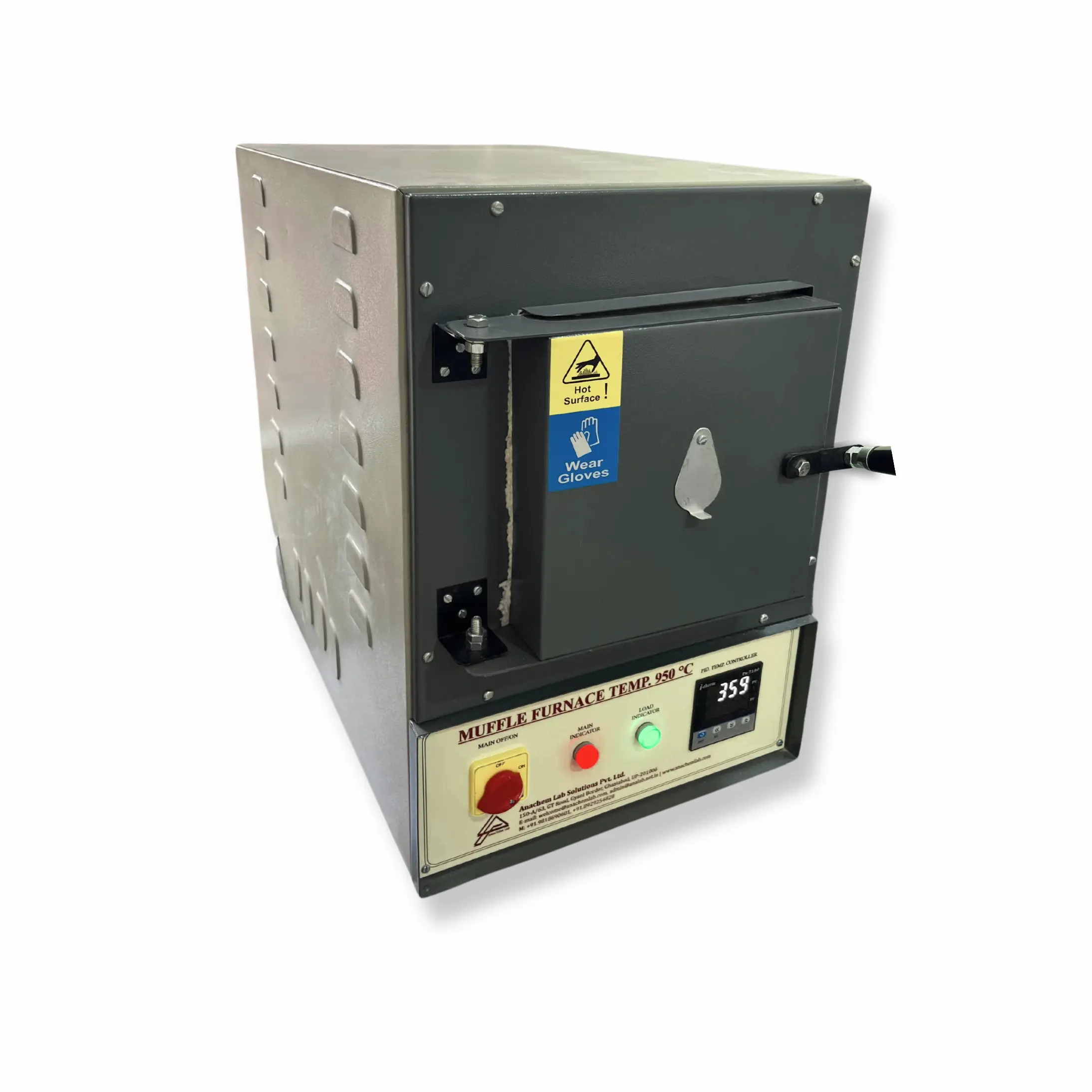

The Anachem Lab Muffle Furnace is a robust, high-performance heating solution designed for laboratories, research institutes, and industrial applications. Built with a ceramic fiber inner chamber, powder-coated MS outer body, and a stainless steel/mild steel base plate, this furnace ensures durability, energy efficiency, and lightweight construction.
The furnace uses special silicon carbide heating elements for quick and uniform heating, while the digital microprocessor controller with timer offers precise control. Depending on the model, K-type thermocouples (up to 1100°C) or R-type platinum thermocouples (up to 1400°C) are used for accurate temperature sensing.
Technical Specifications
Temperature Range (°C) |
Internal Dimensions (H × W × D in inches) |
Power Supply |
Sensor Type |
Controller |
Construction |
|---|---|---|---|---|---|
| 950°C | 5″ × 5″ × 10″, 6″ × 6″ × 12″, 9″ × 9″ × 18″ | 230V AC, 50 Hz | K-Type Thermocouple | Digital Microprocessor Controller with Timer | Ceramic Fiber Inner Chamber, MS Powder-Coated Outer Body, Mild Steel/Stainless Steel Base Plate |
| 1050°C | 5″ × 5″ × 10″, 6″ × 6″ × 12″, 9″ × 9″ × 18″ | 230V AC, 50 Hz | K-Type Thermocouple | Digital Microprocessor Controller with Timer | Ceramic Fiber Inner Chamber, MS Powder-Coated Outer Body, Mild Steel/Stainless Steel Base Plate |
| 1100°C | 5″ × 5″ × 10″, 6″ × 6″ × 12″ | 230V AC, 50 Hz | K-Type Thermocouple | Digital Microprocessor Controller with Timer | Ceramic Fiber Inner Chamber, MS Powder-Coated Outer Body, Mild Steel/Stainless Steel Base Plate |
| 1400°C | 5″ × 5″ × 10″, 6″ × 6″ × 12″ | 230V AC, 50 Hz | R-Type Platinum Thermocouple | Digital Microprocessor Controller with Timer | Ceramic Fiber Inner Chamber, MS Powder-Coated Outer Body, Mild Steel Base Plate |
Applications
- Heat treatment & material testing
- Ash content determination
- Ceramics & glass industries
- Metallurgical labs
- Research & development
